Slip On Flanges

Release time:2021-10-19

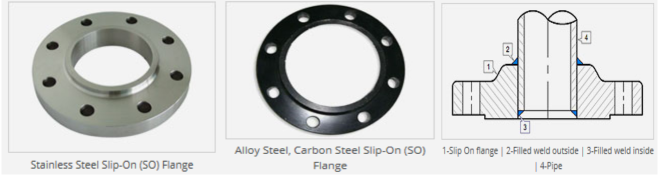

ASME/ANSI B16.5 SLIP-ON (SO) PIPE FLANGES CARBON, ALLOY, STAINLESS STEEL SLIP-ON FLANGES


SLIP-ON FLANGE, SO FORGED FLANGES PRODUCTION RANGE

Size: 1/2″ (15 NB)to 48″ (1200NB)

Standards:ANSI B16.5, ANSIB16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

PressureRatings: Class 150,Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10,PN16, PN25,PN40, PN64 etc.

Carbon Steel Slip-on Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48,F50, F52, F56,F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, SpacerRing/Spade Flange), Steel RST37.2, C22.8

Stainless Steel Slip-on Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321,F904L

Alloy Steel Slip-on Flanges: ASTM A182 F1, F5, F9, F11, F22, F91

Special Alloy Slip-on Flanges: Duplex, Super Duplex, Nickel Alloys

Flange Face Type: Flat Face(FF), Raised Face (RF), Ring Type Joint (RTJ)

Coating/SurfaceTreatment: Anti-rustPaint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot DipGalvanized


Technical Information – Specifications, Dimensions Slip-onFlanges

  ANSI/ASME B16.5 Slip-on Flange 150lb

  ANSI/ASME B16.5 Slip-on Flange 300lb

  ANSI/ASME B16.5 Slip-on Flange 400lb

  ANSI/ASME B16.5 Slip-on Flange 600lb

  ANSI/ASME B16.5 Slip-on Flange 900lb
