SWAGE NIPPLES, CONCENTRIC SWAGE, ECCENTRIC SWAGE, NPT/BSP THREADED SWAGE NIPPLES

Swage Nipples Production Range,

Specifications–Stainless Steel, Carbon Steel, Alloy Steel Swage Nipples

Size: 1/8”to 8”, DN8 to DN200

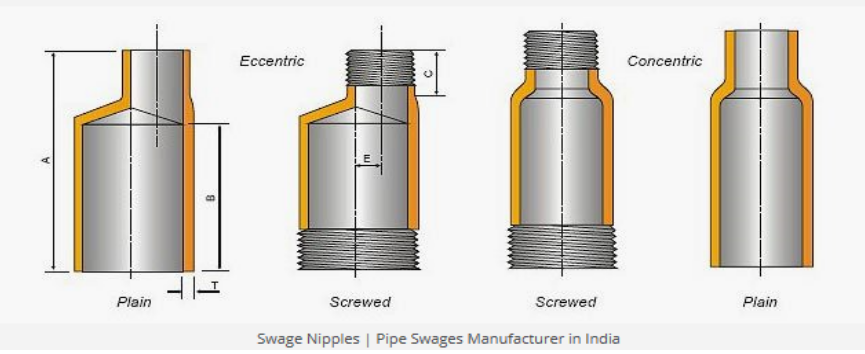

Type: Concentric Swage Nipples, Eccentric Swage Nipples

Dimensions: MSS SP-95-2006, BS 3799

Raw Materials: A106 Gr. B Seamless Pipes,A105/A105N Bars, A182304/304L Bars, A182 316/316L Bars, A312 304/304L Seamless Pipes, Duplex Seamless Pipes, A312 316/316L Seamless Pipes, A350-LF2, Alloy Steel Seamless Pipes/Bars

Material Specifications:ASTM A105, A350 LF2, ASTMA182(F304,F304L,F316,F316L,F304H,F316H,F317L,F321,F11,F22,F91)

Connection Ends:

1.  PBE: Plain both ends, BBE: Bevel both ends,TBE: Thread both ends

2.  PSE: Plain small end, BSE: Bevel small end,TSE: Thread small end

3.  PLE: Plain large end, BLE: Bevel large end,TLE: Thread large end

Thickness：Standard, Extra Heavy,Schedule 160,or Double Extra Heavy

Ends: Beveled, Square Cut (for socket-weld), NPT/BSPT/BSP Threaded Swages, Customer Specification

Test Certificates: EN 10204 3.1, Raw Material Certificates Available,Destructive & Non Destructive Testing (NDT) Reports from NABL Approved Labs
