Reducer

Release time:2021-10-20

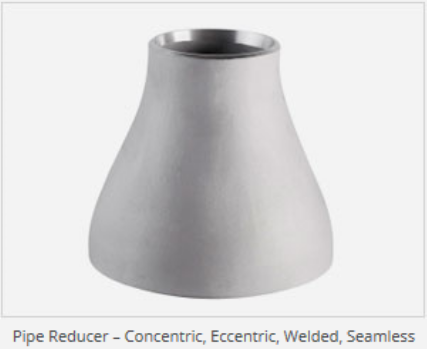

PIPE REDUCER – ECCENTRIC REDUCER CONCENTRIC REDUCER

CARBON,ALLOY, STAINLESS STEEL, COPPER REDUCER


Butt-weld Pipe Reducer Production Range – Concentric & Eccentric

Outside Diameter: SeamlessPipe Reducer ( 1/2″~24″), ERW / Welded /Fabricated Pipe Reducer (1/2″~48″)

Type: Concentric Reducer , Eccentric Reducer

WallThickness: 3mm– 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80,SCH120, SCH140, SCH160, XXS

ValueAdded Services: HotDipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting,Threading, SolderingProductionGrades: StainlessSteel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel,Cupronickel, Copper

ManufacturingStandards

ASME: ANSIB16.9, ANSI B16.28, MSS-SP-43

DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN: EN10253-1, EN10253-2

ASTMA403– ASME SA403 – Standard Specification for Wrought Austenitic Stainless SteelPiping Fittings

ASMEB16.9– Factory-Made Wrought Fittings Butt-weldingASMEB16.25– Butt-welding Ends

ASME B16.28 – ‘Wrought Steel Short Radius Elbows and Butt-weldingReturns

MSSSP-43– ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, CorrosionResistant Applications

Pipe ReducerMaterial Grades

StainlessSteel Reducer;ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

CarbonSteel Reducer:ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

LowTemperature Carbon Steel Reducer: ASTM A420 WPL3, A420 WPL6

Alloy Steel Reducer : ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91Duplex Steel Reducer : ASTM A815, ASME SA 815 UNS NO S31803, S32205.

NickelAlloy Reducer:ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400(MONEL 400 ), UNS8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
