Threaded Pipe Fittings

Release time:2021-10-20

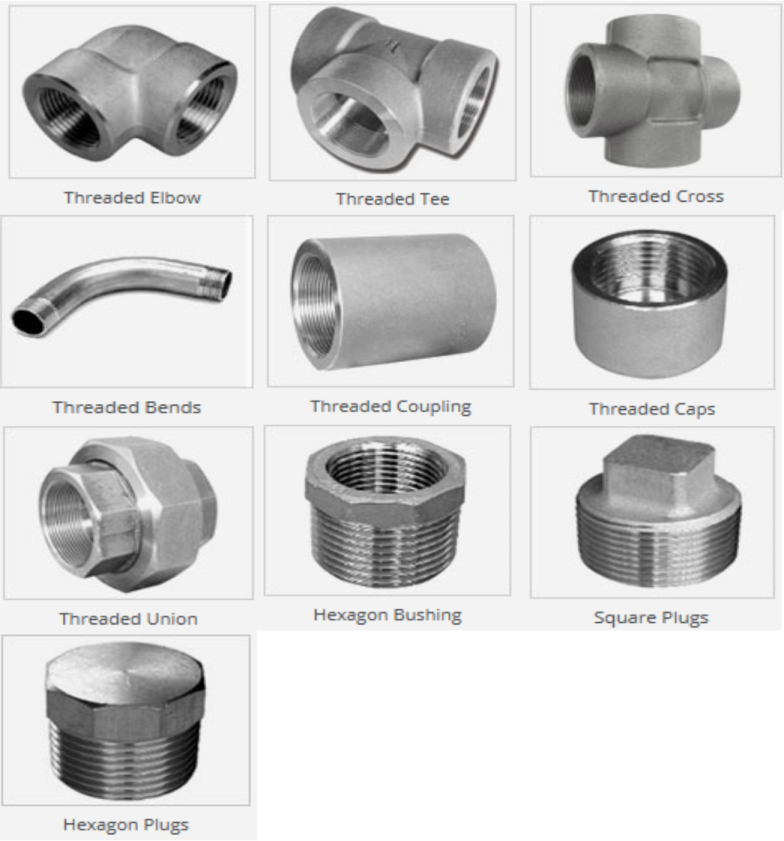

CARBON, ALLOY, STAINLESS STEEL FORGED THREADED PIPE FITTINGS THREADED ELBOW, THREADED TEE, THREADEDCROSS, THREADED UNION, THREADED COUPLING




High Pressure Threaded Pipe Fittings


Pressure Class2000LBS, 3000LBS, 6000LBS
ProductsElbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Street Elbow, Coupling, Half Coupling, Reducing Coupling, Cap, Hex Head Bushing, Hex Head Plug, Square Head Plug, Round Head Plug, Bull Plug, Boss, Outlet, Hex Nipple, Swage Nipple
Dimension SpecificationsASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size1/8″~4″ (DN6~DN100)




Forged Pipe Fittings ManufacturingStandards





ASME B16.11 – ForgedFittings, Socket – Welding and Threaded


MSS SP-43 –Wrought and Fabricated Butt-Welding Fittings for Low Pressure, CorrosionResistant Applications


MSS SP-95 – Swage (d) Nipples and Bull Plugs


BS3799 –Specification for Steel pipe fittings, screwed and Socket-welding for thepetroleum industry





Forged Threaded Stainless SteelFittings


Stainless Steel – ASTMA182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI,F316H, F316LN, F317,F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTMA312/A403 TP304, TP304L, TP316, TP316L





  The material for forged stainless steel fittings conforms to ASME A182


  The dimensions for forged stainless steelfittings conform to ASME B16.11


  NPT Threads conform to ASME B1.20.1





Forged Threaded Carbon Steel Fittings





Carbon Steel ASTM A105,A350 LF2


  The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11


  NPT Threads conform to ASME B1.20.1
