Blind Flange

Release time:2021-10-19

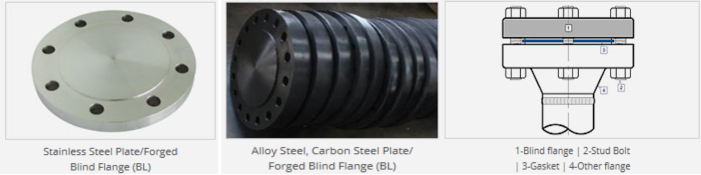

ASME/ANSI B16.5 BLIND (BL) PIPE FLANGES CARBON, ALLOY, STAINLESS STEEL BLIND FLANGES


 BLIND FLANGES, BL FORGEDFLANGES PRODUCTION RANGE

 Size: 1/2″(15 NB) to 48″(1200NB)

 Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44,ASA, API-605, AWWA, Custom Drawings

 Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900,Class1500, Class 2500 | PN6, PN10, PN16, PN25,  PN40, PN64 etc.

 Carbon Steel Blind Flanges: ASTM A105/A105N, A350 LF1,LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52,  F56,F60, F65, F70,A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), SteelRST37.2, C22.8

 Stainless Steel BlindFlanges: ASTM A182 F202,F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L

 Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)

 Coating/Surface Treatment:Anti-rust Paint, Oil Black Paint,Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized


 Technical Information – Specifications,Dimensions Blind Flanges

  ANSI/ASME B16.5 Blind Flange 150lb

  ANSI/ASME B16.5 Blind Flange 300lb

  ANSI/ASME B16.5 Blind Flange 400lb

  ANSI/ASME B16.5 Blind Flange 600lb

  ANSI/ASME B16.5 Blind Flange 900lb

  ANSI/ASME B16.5 Blind Flange 1500lb

  ANSI/ASME B16.5 Blind Flange 2500lb

  ANSI/ASME B16.47 Series B Blind Flange 75lb

  ANSI/ASME B16.47 Series B Blind Flange 150lb

  ANSI/ASME B16.47 Series B Blind Flange 300lb

  ANSI/ASME B16.47 Series B Blind Flange 400lb

  ANSI/ASME B16.47 Series B Blind Flange 600lb

  ANSI/ASME B16.47 Series B Blind Flange 900lb

  ANSI/ASME B16.47 Series A (MSS SP44) Blind Flange150lb

  ANSI/ASME B16.47 Series A (MSS SP44) Blind Flange300lb

  ANSI/ASME B16.47 Series A (MSS SP44) Blind Flange400lb

  ANSI/ASME B16.47 Series A (MSS SP44) Blind Flange600lb

  ANSI/ASME B16.47 Series A (MSS SP44) Blind Flange900lb
